Denali Pro Series Tapered COMPLETE UTV Snow Plow Kit w/mount

$749.99$929.99

DENALI Pro Series UTV Snow Plows are ready for the snow season! Our team of engineers designed a Cadillac plow at a reasonable price so you don’t have to skimp on quality to save money. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV and SxS, preventing damage to the front end or other vehicle parts from sudden impact.

Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.

Kit Contents:

  • UTV Snow Plow Blade – County / DOT Style
  • Choice of Pushtube
  • One (1) Reversible Wearbar
  • Rubber Flap
  • Rubber Flap Stabilizer Bar
  • Skid Feet
  • Plow Markers
  • Plow Mount (machine specific)
  • Click here for Installation Instructions

Clear
SKU: N/A Category: Tags: ,

Description

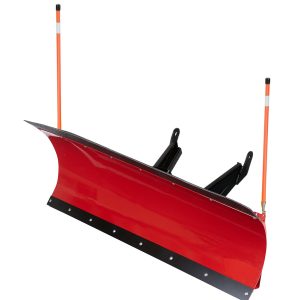

Blade Features:

  • County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
  • Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
  • Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
  • High strength, high yield 3/16 thick Grade 50 steel wear bar
  • Angled Blade : 16 on the low side; 23 on the high side
  • Rubber flap & stabilizer bar with rubber flap
  • Height AND angle adjustable steel skid feet
  • 3 Year Warranty
  • Made in the USA

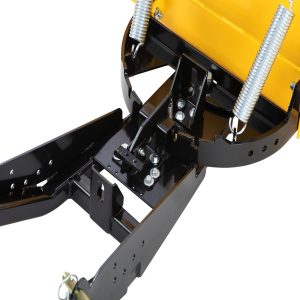

Pushtube Features:

  • Impact Resistant Reinforced Pivot Assembly – 2 additional support bars for maximum durability & strength
  • Turn system allows for easy positioning of the blade in 5 different angles – 0, 12.5°, 25°
  • Simple detachment system with the pull of a pin
  • Structural tube steel cross bar for added lateral rigidity
  • Quick release pins included
  • Extended Push Tubes are designed to be used with SxS/UTVs with tracks installed

Click here for Optional Hydroturn:

  • Top of the line Parker hydraulics system with built in relief valve overload protection
  • Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
  • Change the blade angle while driving; full radius turn in just 5 seconds
  • Heavy duty chrome plated ¾″ cylinder shaft
  • No modifications necessary – bolts directly to the Denali UTV Plow Push Tubes
  • Wire harness utilizes weatherproof connectors

Click here for Optional Plow Pulley Fairlead:

Roller

Replaces the winch fairlead during the plow season

For use with Steel AND Synthetic cables

Curved cable groove helps eliminate flattening and breaking of cable

Bolt Patterns:

Standard Spool: 3″ x 4.875″

Wide Spool: 3″ x 6.67″

Sheave

Includes pulley, 1/4″ clevis hook and nylon strap

Allows greater precision when raising/lowering plow blade and increases the angle of pull

Cable

12′ length, 1/4″ diameter

Single braid, dyneema rope with galvanized steel thimble/eyelet
