HD PRO +2 Forward Camber Adjustable A-arm Kit by ZBROZ

Description

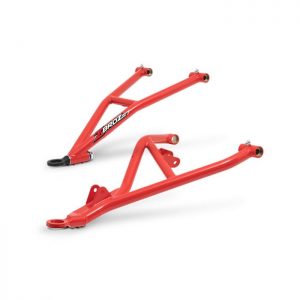

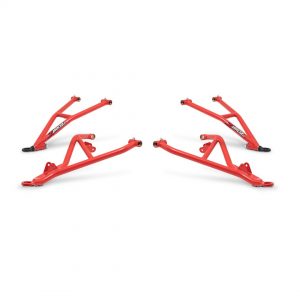

ZBroz Polaris RZR XP 1000/Turbo Forward Camber Adjustable A-Arm Kit

Built from 1.125″ Diameter DOM steel tube to take on any mountain trail, rock crawling, and desert/dune rally action.  All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality.  All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.

Our Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles.  Zbroz Racing was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002.  We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.

+2″ Forward Design

Looking to run larger tires?  Larger tires are key for mountain trail, rock crawling, and high-speed desert/dune racing.  Easily fits 30″ to 33″ tall tires without modification or fender trimming by simply installing this A-Arm Kit.  Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs.

The Lower A-Arms feature our Camber Adjustable ball joint housing that allows you to fine-tune the camber settings on your RZR.  Simply unbolt the ball joint housing and add or remove included camber shims.  Each shim will adjust the camber by 1 degree.  All Camber Adjustable A-Arm Kits are shipped with negative 1-degree camber.  Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding.  This Camber Adjustable feature allows total adjustment so that you can fine-tune the camber on each side.  We’ve experienced brand new RZR’s where the frame or frame a-arm mounting points are slightly off side to side. With this Camber Adjustable A-Arm Kit, you will have complete fine camber adjusting control.

Our ball joint housing specs are compatible with OEM and most aftermarket ball joints.  We offer a pre-installed ball joints option using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms.  And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.

Easy to install with a jack or lift in your driveway or garage with basic tools.
